Samsung’s ISOCELL HP5: What to Expect from the Next Big 200MP Sensor

Samsung’s ISOCELL HP5 What to Expect from the Next Big 200MP Sensor

Samsung has officially introduced the ISOCELL HP5, a 200-megapixel image sensor that sets a new benchmark for miniaturization in mobile photography. As the first sensor in the world to feature 0.5-micrometer (µm) pixels, the HP5 demonstrates how far semiconductor and photonic engineering have come in balancing resolution, sensitivity, and speed.

Pushing the Boundaries of Pixel Size

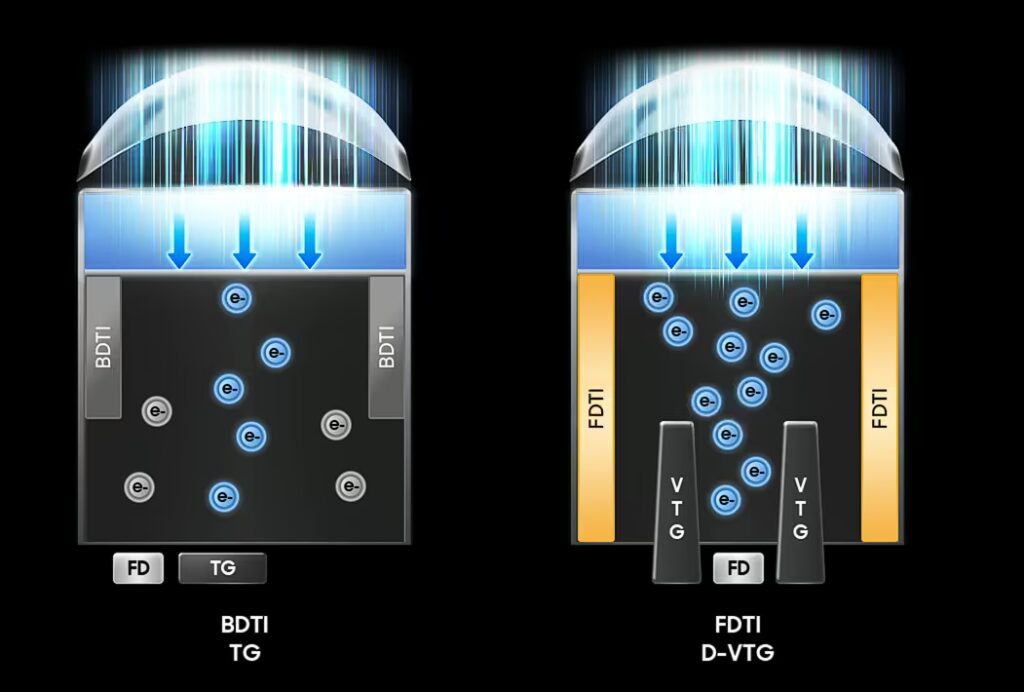

Shrinking pixels has always involved a trade-off. Smaller photosites capture less light, often leading to reduced dynamic range and increased noise. Samsung’s HP5 tackles this challenge with a combination of Front Deep Trench Isolation (FDTI) and Dual Vertical Transfer Gate (D-VTG) technologies.

These enhancements maximize the Full Well Capacity (FWC) of each pixel, allowing more electrons (light information) to be stored despite the reduced area. In simple terms, the HP5 collects more light per pixel than its size would traditionally allow.

Samsung has also applied DTI Center Cut (DCC), a structural innovation that improves light efficiency and autofocus precision. The company claims this approach results in a 150% boost in conversion gain and up to a 40% reduction in random noise, enhancing clarity in low-light environments.

Optimized Light Management

To further improve light capture and minimize optical loss, the HP5 employs several refinements at the microlens and isolation levels:

  • High Precision Microlens (High-P): Enhances light-focusing accuracy on each pixel.
  • High Transmittance Anti-Reflective Layer (High-T): Reduces internal reflections and scattering.
  • High Sensitivity DTI (High-S): Uses oxide-based insulation to lower optical interference and light leakage.

Together, these technologies help the HP5 maintain strong performance across varying lighting conditions, something crucial for both wide-angle and telephoto applications.

Versatility Across Zoom Ranges

The ISOCELL HP5 is designed to be adaptable across camera modules. It supports 2× in-sensor zoom on wide-angle setups, which is a hardware-based crop within the native resolution that retains more detail than traditional digital zoom.

When paired with a 3× telephoto module, the effective range extends up to 6× hybrid zoom, with minimal degradation in clarity. This approach gives manufacturers more flexibility in designing compact yet capable camera systems.

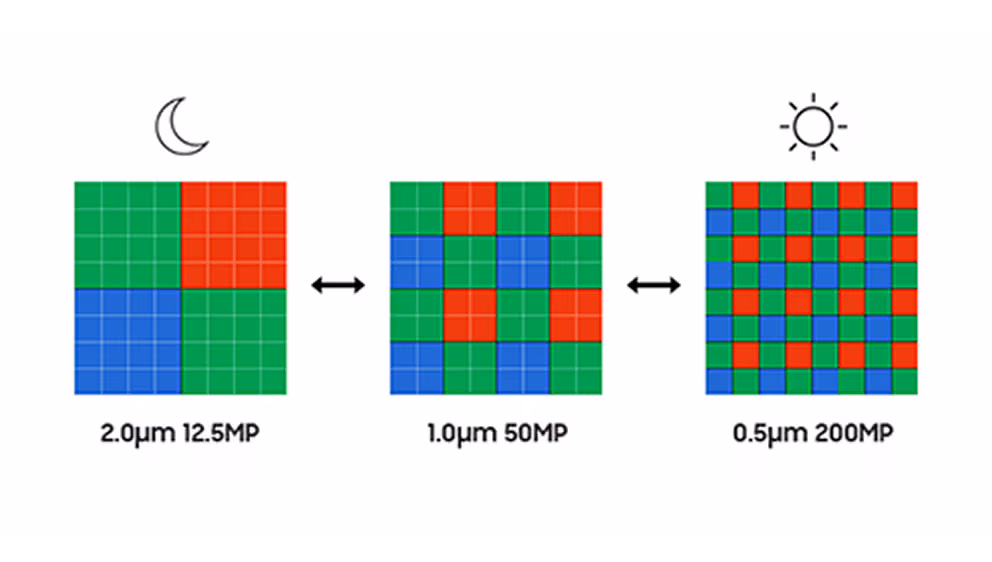

Tetra²pixel Binning for Adaptive Performance

The HP5 continues Samsung’s evolution of pixel-binning technology with Tetra²pixel, which dynamically adjusts the pixel arrangement to suit lighting conditions:

  • 200MP at 0.5µm for bright daylight
  • 50MP at 1.0µm for moderate light
  • 12.5MP at 2.0µm for low-light scenes

By combining adjacent pixels, the sensor effectively increases light sensitivity and reduces noise when illumination drops without the need for external optical changes.

HDR and Color Depth Enhancements

The HP5 integrates two key imaging systems: Smart-ISO Pro and Staggered HDR, to expand dynamic range and color fidelity.

  • Smart-ISO Pro merges multiple readouts from high and low ISO levels, producing a 13-bit color depth capable of rendering over 550 billion color combinations, a significant improvement over 12-bit sensors.
  • Staggered HDR captures long, medium, and short exposures sequentially on each line of the sensor, combining them into a single HDR image with preserved highlights and shadow detail.

AI-Driven Processing

Samsung’s End-to-End (E2E) AI Remosaic engine enables the HP5 to process 200MP images in under two seconds, reducing the latency traditionally associated with ultra-high-resolution captures. This allows users to take full-resolution photos without noticeable lag, even in challenging conditions.

Samsung ISOCELL HP5 Technical Specifications

ParameterSpecification
Resolution200MP (16,384 × 12,288)
Pixel Size0.5 µm
Optical Format1/1.56-inch
Color FilterTetra²pixel RGB Bayer
Frame Rate7.5 fps @ 200MP / 30 fps @ 50MP / 90 fps @ 12.5MP
Video Recording8K @ 30 fps / 4K @ 120 fps / FHD @ 480 fps (w/o AF)
Shutter TypeElectronic rolling shutter
AutofocusSuper QPD (Phase Detection AF)
HDR ModesSmart-ISO Pro (iDCG), Staggered HDR
Analog GainUp to 256× @ 12.5MP
Output FormatsRAW8 / RAW10 / RAW12 / RAW14
Interface4-lane D-PHY (4.5 Gbps per lane) / 3-trio C-PHY (4 Gsps per trio)
Operating Temperature−20 °C to +85 °C
StatusMass production

The ISOCELL HP5 showcases Samsung’s ongoing commitment to pixel-level innovation, rather than relying solely on sensor size. While its 0.5 µm pixel pitch may sound extreme, the combination of isolation, microlens, and AI processing suggests Samsung is confident in the sensor’s ability to retain both brightness and dynamic range.

If implemented effectively by smartphone OEMs, the HP5 could mark another step toward closing the gap between compact mobile cameras and larger-sensor systems.
